Description

manufacturer

The Medo LA-100 Air Pump has rated pressure of 0.15 kgf/cm2(2.56 psig) and rated airflow* of 100 LPM (3.53 cfm) or over.

Medo linear piston air pumps are a great solution for a aerobic sewage treatment systems. Medo air pumps may also be used for aerating backyard ponds and other aquatic applications including decorative fountains and other liquid mixing applications.

Medo linear piston pumps have a single internal piston reducing operating noise and vibration while increasing durability and long life.

Self-cooling with oil-free operation, Medo piston air pumps require very little energy consumption.

*When operated at the rated pressure noted.

Features

  • Die cast piston construction
  • UL-approved for outdoor use
  • integrated grounded line cord
  • 6 years service life expectancy (with proper installation and periodic maintenance)

Charts

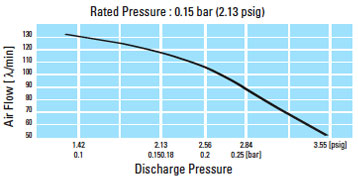

Pressure chart for Medo LA-100 Linear Air Pump

Chart courtesy of Medo USA Inc.

Specifications

ModelLA-100
Power SupplyAC 120V,220V,230V,240V
Rated Frquency60Hz
Operating Pressure Range1.42 - 3.56 psig
Rated Pressure0.15 kgf/cm2(2.56 psig)
Rated Airflow*100 LPM (3.53 cfm) or over
Power Consumption95 W @ 60 Hz
Running Current1.7 amps
Noise Level48 dB Max
Weight20.7 lbs
Unit Dimensions16.063"L x 8.268"W x 9.134"H

*When operated at the rated pressure.
